Mini Single Phase Digital Panel Meter AC Volt Meter 80-500V LCD 3 Digits Display
Mini Digital Panel Meter Description:

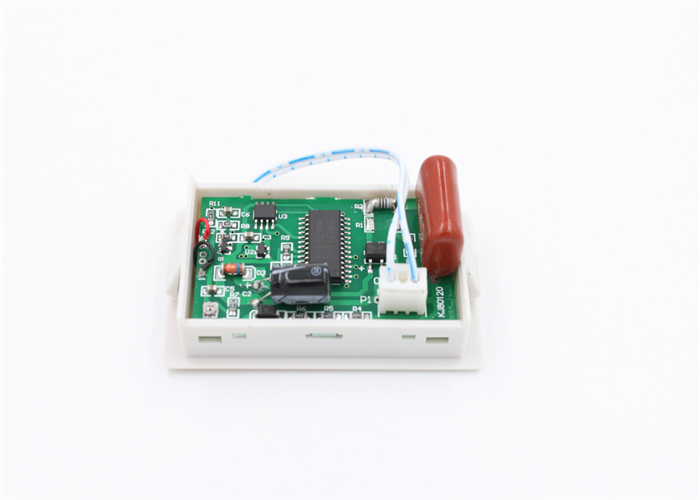

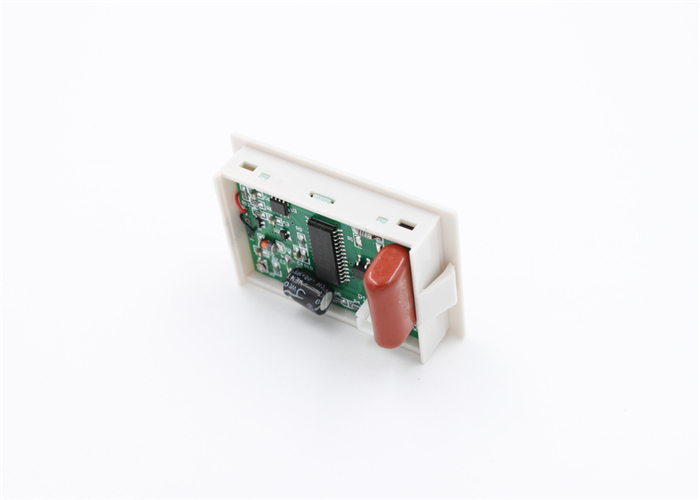

The Mini Digital panel meter is three and a half digital voltmeter and ammeter which has a high performance, and it has high accuracy, good stability, clear display and sophisticated technology It has a plastic side frame of push-in self-locking structure, exquisite and elegant, with a beautiful appearance and easy installation. There is position for installing range expansion unit and position for back-inset socket on the printed circuit board of the header.
Product parameters:
- Power Supply: DC 5V, or AC 220V, or AC 7-12V.
- Frequency range: 50HZ.
- Output current: 1A or 5A (user specified).
- Range expansion: with shunt or transformer.
- LED: highlight 0.56 display, one second data update.
- Over range indication: 1 or-1.
- Display range: 0-1.999.
- Insulation resistance: 100MΩ.
SK85 Series Mini Digital Panel Meter
Basic Technical Specifications:
| Item: | SK85-2SL |
| Input Voltage: | 100-300V AC |
| Input Current Input: | 0-50A AC |
| Accurate Class: | 1.0%+-2D |
| Power Dissipation: | <3VA |
| External Dimension: | 70*42*20mm |
| Opening Size: | 67.5*38mm |
| | |
| Item: | SK85-2SL |
| Input Voltage: | 100-300V AC |
| Input Current Input: | 0-100A AC |
| Accurate Class: | 1.0%+-2D |
| Power Dissipation: | <3VA |
| External Dimension: | 70*42*20mm |
| Opening Size: | 67.5*38mm |
| | |
| Item: | SK85-2SC |
| Input Voltage: | 5-15V DC |
| Input Current Input: | 0-5A DC |
| Accurate Class: | 1.0%+-2D |
| Power Dissipation: | <3VA |
| External Dimension: | 70*42*20mm |
| Opening Size: | 67.5*38mm |
| | |
| Item: | SK85-2SC |
| Input Voltage: | 6-100V DC |
| Input Current Input: | 0-5A DC |
| Accurate Class: | 1.0%+-2D |
| Power Dissipation: | <3VA |
| External Dimension: | 70*42*20mm |
| Opening Size: | 67.5*38mm |
| | |
| Item: | SK85-2SC |
| Input Voltage: | 5-15V DC |
| Input Current Input: | 0-75mV DC |
| Accurate Class: | 1.0%+-2D |
| Power Dissipation: | <3VA |
| External Dimension: | 70*42*20mm |
| Opening Size: | 67.5*38mm |
Working Environment Note:
- Should be used in the temperature range 0~40C, humidity: ≤80%, to prevent undesirable phenomena caused by temperature changes.
- Take care of vibration and shock.
- Do not use it in places with dust, gas and chemicals harmful for electrical products.If the abnormal voltage is caused by the magnetic field, high frequency devices, high voltage spark, lightning and etc, please use the external power line filter or non-linear resistors to interfere and absorb the circuit.The signal input line should be as short as possible, and protective shielding wire should be used in places where there may be interfering signals. It is recommended to use twister pair in general conditions.
Further information:
1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.
2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.
3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.
FAQ
A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit
B. Would you accept OEM/ODM service?
Glad to say that there is planning department, technical department and mould tooling center in
our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
